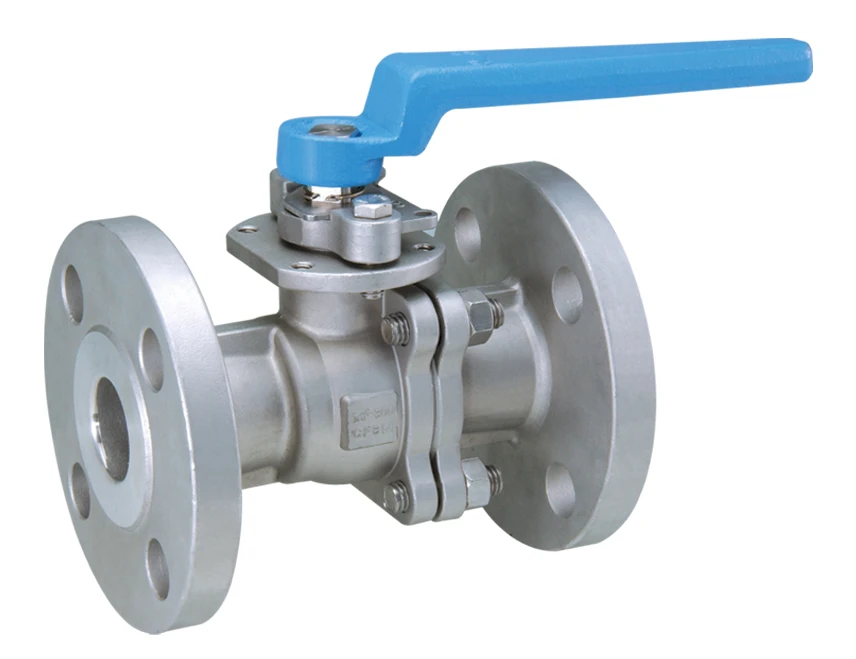

2-PC 法蘭 300WOG

FEATURES: ◇ FULL PORT ◇ INVESTMENT CASTING ◇ MATERIAL: ASTM-A351-CF8M, ASTM-A351-CF8 ASTM-A351-CF3M, ASTM-A216-WCB ◇ WORKING PRESSURE: ANSI CLASS 300 ◇ FLANGE DIMENSION: ANSI B16.5 ◇ FACE TO FACE DIMENSION: ANSI B16.10 ◇ SIZE RANGING: 1/2"~4" (DN15~DN100) ==> 1-1/4”(DN32) & 2-1/2”(DN65) ARE NOT AVAILABLE ◇ WITH FCD OPERATION ◇ LOCKING DEVICE ON VALVE BODY ◇ WITH ISO 5211 MOUNTING PAD
